VAXXi

Computer De Bord Cielo / Espero

Recommended Posts

Multumita lui Satori si Ovi_Jer, am aflat de existenta acestui minunat produs nascocit de rusi (aah, those russians !) (nota: pentru Kalos/Aveo, vedeti aici).



Pagina produsului este Prestige D-12. In continuare, o traducere aproximativa cu Babelfish:

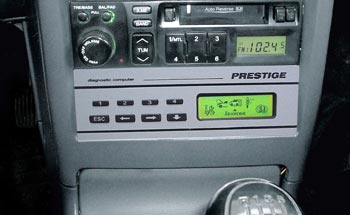

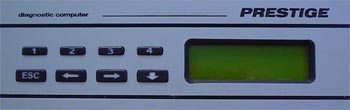

Route computer is PRESTIGE D -12 (green display)



Route diagnostic computer PRESTIGE D -12 (further BK) is intended for the installation to automobiles CHEVROLET Lanos, DAEWOO Nexia, DAEWOO Espero, DAEWOO Lanos equipped with injector engine with the electronic components of control: GM-Multec Iefi-6, GM-Multec Iefi- iefi-s. Software of a computer provides the automatic selection of the protocol of exchange with the controller of automobile, which removes from the owner the task of manual tuning and facilitates the process of initial tuning. Computer processes the information, which comes from the electronic component of engine control, of sensor of the consumption of fuel, velocity transducer of automobile, sensor of the fuel level in the tank, the sensor of external temperature, and also is achieved the inspection of the onboard voltage of automobile. On the basis of the continuously obtained information computer maps into convenient for the user form a large quantity of instantaneous and statistical parameters of the motion of automobile, and also diagnostic information about the state of the system of engine control and electrical equipment of automobile.



Computer makes it possible to carry out complete professional diagnostics of the electronic system of engine control. The program of computer has the sufficiency of personal tuning with the aid of which it is possible to flexibly reprogram its work at will of user and to independently create reporting chain with the malfunctions of the system of injection and electrical equipment of automobile, deviation from the required limits of the parameters of the input and output signals of controller or from the assigned limits of the statistical and dynamic parameters of motion. With the appearance of errors or malfunctions ESUD software of a computer proposes the map of the search for the emergent malfunction (with an accuracy to the failed sensor or electrical chain). On the basis of the data about the path of automobile and calendar placed into the memory the computer reminds one of the need of conducting the sequential maintenance of automobile with the delivery of the enumeration of required works; it makes possible for user itself to assign the parameters of any notifications depending on time, dates, the remainder of the fuel, current speed or path of automobile. With the aid of the computer it is possible to examine and to correct the parameters of the electronic component of engine control (EBU), and to also govern the work of separate it is main and the mechanisms of automobile; it is possible to introduce into the memory information about the motion on 10 different routes and in the process of motion to automatically check the passed distance, spent by fuel- and time; to analyze the parameters of the motion of automobile according to the path, the general expenditure of fuel, the expenditure of fuel for warming up or by simple and the fuel remainder in the tank. For convenience in the control of the measured parameters in the computer is realized the regime of simultaneous mapping onto the display of any 10 different parameters, selected at will of user (PANORAMA).



Software of a computer makes it possible to automatically fix each servicing of automobile and it does not require of the user of the manual introduction of a quantity of filled fuel. For eliminating the possible errors in the measurements are intended the regimes of the correction of the indications of the sensors of the consumption of fuel, external temperature and speed of automobile, and also sensor of the fuel level in the tank. For convenience in the work with the computer vocal synthesizer is used, it is valuable with the high quality wiring for sound the reflected information. Basic menu of system - graphic, revolving type, that consists of the separate points - the pictograms.






--



Mai departe, explica meniurile deviceului, se poate face o idee aproximativa despre el. Pretul lui convertit din ruble este undeva la 80 EUR; suntem acum in discutii cu rusii sa vedem daca ne pot expedia, si de vreun discount pentru cantitati mai mari ... deci, bagati :D





1. VAXXi

Share this post


Link to post

Merge si pe Cielo Euro 3?

Share this post


Link to post

Daca merge la Leganza, vreau si eu :D

Share this post


Link to post
Route diagnostic computer PRESTIGE D -12 (further BK) is intended for the installation to automobiles CHEVROLET Lanos, DAEWOO Nexia, DAEWOO Espero, DAEWOO Lanos equipped with injector engine with the electronic components of control: GM-Multec Iefi-6, GM-Multec IEFI/IEFI-S.

Share this post


Link to post

Pai si nu e in ruseste?!?

Un dispozitiv de Cruise Control n-au? Am vazut Cruise Control pe ebay universale actionate atat cu vacuum cat si electric, chiar si pt masini cu cablu de acceleratie. Se duc la vreo 170$ fara shipping. Anyone?

Edited by Esperatul

Share this post


Link to post

Vaxxi, vreau si eu. Daca se face o lista, te rog sa ma treci si pe mine.

Daca are meniuri numai in rusa, am pus-o :(



PS Si daca se rezolva, cum facem cu instalarea? Ca eu n-am talente de astea din pacate...

Edited by Moshu

Share this post


Link to post

Ce sa faci cu el?Nu merge decit pe cielo GL/GLE.

Share this post


Link to post

N-am stiut. Merci.

Vazusem nexia...

Nu mai vreau, logic. :D

Edited by Moshu

Share this post


Link to post

Deci ca sa inteleaga toata lumea : merge pe cielo GL/GLE-espero si teoretic pe cielo executive euro 2 cu ecm de lanos.

Pentru cielo euro 3 merge cel de kalos/lacetti.

Share this post


Link to post

Daca menu-ul este macar in engleza (si nu in rusa ca limba asta nu o mai stiu din '89 ;) ) ma prind si eu.

Montajul cum se efectueaza? Fiecare cum se descurca sau gasim pe cineva dintre noi, meserias care sa o efectueze contra cost?

Share this post


Link to post

Vad ca la ei s-a fabricat si Nexia Dohc http://www.uzdaewoo.ru/salon/nexia/dohc/specs/. Care dintre Euro 2 au Ecm de Lanos? Ne pot da o confirmare sau infirmare ca merge pe Cielo Euro2 ?



Nu cred ca meniul in rusa e o problema asa mare, daca exista o traducere, se invata. Se pot obtine specificatiile de instalare?



Daca merge la mine, ma inscriu.

Share this post


Link to post

Afisajul ala mi se pare destul de liliputan pentru cata informatie vrea sa ofere. Numai zic ca, in pozitia care se monteaza, o sa fie destul de dificil de citit, chiar periculos, in timpul mersului. :scarpin:

Share this post


Link to post

Ma rog, periculos e si la muzica sa umbli, pe mine insa ma intereseaza jucaria.

Am tradus cum am putut (daca nu e ok complet corect, nu dati cu parul) in engleza documentul (tot altavista) cred ca acum ne putem face o idee.

Inca o data, intrebati va rog daca merge si la Cielo Euro 2 DOHC.



D_12_eng.rar

Edited by Tommy

Share this post


Link to post

Teoretic tu ai ecm IEFI-S :P

Share this post


Link to post
Pentru cielo euro 3 merge cel de kalos/lacetti.

Deci pot sa ma inscriu pentru cel de kalos? Sigur merge la mine?

Share this post


Link to post

Dar pentru Leganza nu se gaseste? Credeam ca merge si asta pentru ca scrie ca merge pe espero(si din cate stiu erau si espero cu motor de leganza).

Share this post


Link to post
din cate stiu erau si espero cu motor de leganza

Ce fain ar fi! [-O< pacat ca nu e asa.

Edited by Esperatul

Share this post


Link to post

Salut,

Tot va uitati la rusi.. poate peste ocean preturile sunt mai bune si produsele compatibile cu multe tipuri de masini (peste 96). Am gasit ScanGauge II, care face cam aceleasi lucruri ca Prestige-ul, dar la 170 USD, transportul inclus (nasol, numai USA si Canada). Caracteristicile la www.linear-logic.com. Gasiti prosusul si pe ebay la vreo 165 USD, dar nu se livreaza in Romania.



Bafta la si cumparare

Share this post


Link to post

Nu sant compatibile si sant si mai scumpe decit cele de la rusi.

Share this post


Link to post
1. VAXXi





VAXXi, nu-i lua in seama pe invidiosii cu Nubira/Leganza :P

In ce stadiu sunt tratativele ?





--- Update la lista doritori PRESTIGE D -12 ---

1. VAXXi

2. pixel

Share this post


Link to post

vreau si eu !!!!! :lavolan:

Share this post


Link to post

Poate pic ca din cer aici, dat fiind ca e primul meu post pe forum, desi sunt de destul de multa vreme inscris, dar cred ca m-as baga si eu, mai ales daca imi si spune cineva cum se monteaza...

Share this post


Link to post

NU se mai aude nimic?????? [-O<

Share this post


Link to post

S-ar auzi daca rusii ar raspunde la emailuri. Poate trebuie sa le scriem in rusa dar cum nu stim sa facem asta... Asteptam sa invete engleza.

Share this post


Link to post

vreau eu mailu pe care vreti sa-l trimiteti ca poate reusesc sa-l traduc.

Share this post


Link to post
